ORBIT Node (version 4)

The fourth generation of ORBIT nodes

Main Generation 4 Nodes

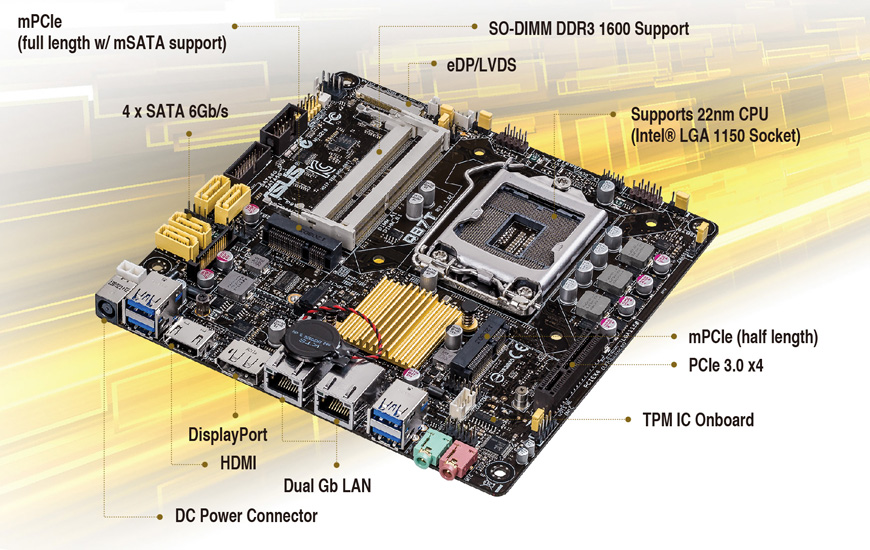

The fourth generation of ORBIT nodes are based on Asus Q87T motherboards. These thin Mini ITX Form Factor with LGA1150 socket motherboards are powered by a single 19V power source which makes them suitable for use in cars and for other mobile applications. The deployed nodes come in two configurations:


USA sources

CDWG


High Performance Generation 4 Nodes

  1. Supermicro X10SDV-TLN4F
    1. Xeon D-1540 cpu with 8 cores
    2. Supports Dual Channel ddr4 memory, up to 128GB
    3. 10GBase-T LAN onboard
    4. Onboard OOB management capability
    5. Can attach peripherals via USB3.0, or via PCIE 3.0 X16 slot
    6. Supports high speed storage in M.2 PCIe x4 slot.

Large Core Count Generation 4 (SDR) Nodes

  1. Asrock EPC612D4I
    1. Supports Xeon E5-2600v3 series cpus, up to 2699v3, with 18 cores.
    2. Supports Quad Channel ddr4 memory, up to 64GB
    3. Onboard OOB management capability
    4. Can attach peripherals via USB3.0, or via PCIe 3.0 X16 slot.
