wiki:Internal/OpenFlow/OrbitSwitches/sw-sb-top2

sw-sb-02 (aggregate sandbox switch 2)

access: 172.16.0.252

Testbed switch layout

Both SB4 and SB9 are OpenFlow SB's. For SB4, sw-sb-top will supply all ports. For SB9, the switch will provide CM, Control, and Application server links.

  • CM: 17 ports (2 for SB3, 8 for SB4, 7 for SB9)
  • SB3 control: 2 to nodes, 1 to console
  • SB4 control: 8 to nodes, 1 to console
  • SB9 control: 7 to nodes, 1 to console and application server

VLANs

VLAN 3 (CM) is consistent across all SandBoxes. Each SB only has a control VLAN on this switch. SB9 has a dedicated and separate data plane switch (sw-sb9-da).

VLAN counts:5   VLAN tunneling enabled
ID   Status  Fwd/Up /Cfg Name             Type  Protocol         Ext.  IP
1    Up      3/3    /4   VLAN0001         Port  -                - - - 4
3    Up      20/20  /20  CM               Port  -                - - - -
15   Up      4/4    /4   sb3_ctrl         Port  -                - - - -
17   Up      11/11  /11  sb4_ctrl         Port  -                - - - -
27   Up      10/10  /13  sb9_ctrl         Port  -                - - - -

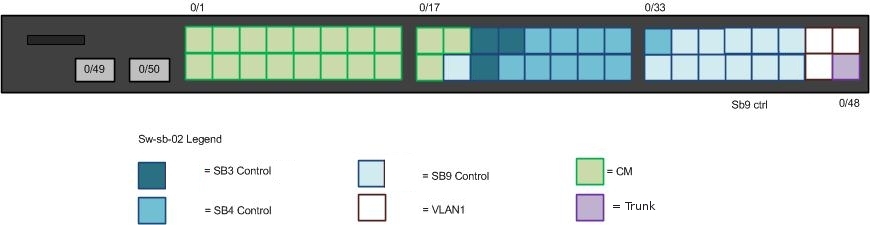

Port Assignments


Port  Name           Status Type        VLAN
 0/ 1 geth0/1        up     Tunnel      3   (CM)
 0/ 2 geth0/2        up     Tunnel      3   (CM)
 0/ 3 geth0/3        up     Tunnel      3   (CM)
 0/ 4 geth0/4        up     Tunnel      3   (CM)
 0/ 5 geth0/5        up     Tunnel      3   (CM)
 0/ 6 geth0/6        up     Tunnel      3   (CM)
 0/ 7 geth0/7        up     Tunnel      3   (CM)
 0/ 8 geth0/8        up     Tunnel      3   (CM)
 0/ 9 geth0/9        up     Tunnel      3   (CM)
 0/10 geth0/10       up     Tunnel      3   (CM)
 0/11 geth0/11       up     Tunnel      3   (CM)
 0/12 geth0/12       up     Tunnel      3   (CM)
 0/13 geth0/13       up     Tunnel      3   (CM)
 0/14 geth0/14       up     Tunnel      3   (CM)
 0/15 geth0/15       up     Tunnel      3   (CM)
 0/16 geth0/16       up     Tunnel      3   (CM)
 0/17 geth0/17       up     Tunnel      3   (CM)
 0/18 geth0/18       up     Tunnel      3   (CM)
 0/19 geth0/19       up     Tunnel      3   (CM)
 0/20 geth0/20       down   Tunnel      27  (sb9_ctrl)
 0/21 geth0/21       up     Tunnel      15  (sb3_ctrl)
 0/22 geth0/22       up     Tunnel      15  (sb3_ctrl)
 0/23 geth0/23       up     Tunnel      15  (sb3_ctrl)
 0/24 geth0/24       up     Tunnel      17  (sb4_ctrl)
 0/25 geth0/25       up     Tunnel      17  (sb4_ctrl)
 0/26 geth0/26       up     Tunnel      17  (sb4_ctrl)
 0/27 geth0/27       up     Tunnel      17  (sb4_ctrl)
 0/28 geth0/28       up     Tunnel      17  (sb4_ctrl)
 0/29 geth0/29       up     Tunnel      17  (sb4_ctrl)
 0/30 geth0/30       up     Tunnel      17  (sb4_ctrl)
 0/31 geth0/31       up     Tunnel      17  (sb4_ctrl)
 0/32 geth0/32       up     Tunnel      17  (sb4_ctrl)
 0/33 geth0/33       up     Tunnel      17  (sb4_ctrl)
 0/34 geth0/34       up     Tunnel      27  (sb9_ctrl)
 0/35 geth0/35       up     Tunnel      27  (sb9_ctrl)
 0/36 geth0/36       up     Tunnel      27  (sb9_ctrl)
 0/37 geth0/37       up     Tunnel      27  (sb9_ctrl)
 0/38 geth0/38       up     Tunnel      27  (sb9_ctrl)
 0/39 geth0/39       up     Tunnel      27  (sb9_ctrl)
 0/40 geth0/40       up     Tunnel      27  (sb9_ctrl)
 0/41 geth0/41       down   Tunnel      27  (sb9_ctrl)
 0/42 geth0/42       down   Tunnel      27  (sb9_ctrl)
 0/43 geth0/43       up     Tunnel      27  (sb9_ctrl)
 0/44 geth0/44       up     Tunnel      27  (sb9_ctrl)
 0/45 geth0/45       up     Tunnel      1   (VLAN0001)
 0/46 geth0/46       up     Tunnel      1   (VLAN0001)
 0/47 geth0/47       down   Tunnel      1   (VLAN0001)
 0/48 geth0/48       up     Trunk       1,3,15,17,27
 0/49 tengeth0/49    down   Access      -
 0/50 tengeth0/50    down   Access      -

OpenFlow configs

none.

Last modified 9 years ago Last modified on Aug 2, 2011, 3:58:20 PM
