Description

This tutorial demos capturing spectrum data using the Zynq-based WISER platform on ORBIT.

Hardware / Software Resources utilized

  1. An SB6 node with WISER platform connected to it.
  2. wiser_sb6_zedboard.ndz: disk image.
  3. wiserd application - Check here for more info.

Set up

  • After the set-up is complete, ssh into node1-1 and build the wiserd application
    root@node1-1:~# cd wiserd
    root@node1-1:~/wiserd# make clean
    root@node1-1:~/wiserd# make
    g++   -Wall -g -O -std=gnu++0x  -c -o channel_status.o channel_status.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o consumer_moving_average.o consumer_moving_average.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o fft_movavg_dc.o fft_movavg_dc.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o fft_movavg_oml.o fft_movavg_oml.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o fft_movavg_udp.o fft_movavg_udp.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o fft_pow_udp.o fft_pow_udp.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o fft_sigpower_oml.o fft_sigpower_oml.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o main.o main.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o radio.o radio.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o recv_consumer_factory.o recv_consumer_factory.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o recv.o recv.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o signal_from_file.o signal_from_file.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o time_samples_to_file.o time_samples_to_file.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o tran_consumer_factory.o tran_consumer_factory.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o tran.o tran.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o usrp.o usrp.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o waveform.o waveform.cpp
    g++   -Wall -g -O -std=gnu++0x  -c -o zynq.o zynq.cpp
    g++ -L/usr/local/lib channel_status.o consumer_moving_average.o fft_movavg_dc.o fft_movavg_oml.o fft_movavg_udp.o fft_pow_udp.o fft_sigpower_oml.o main.o radio.o recv_consumer_factory.o recv.o signal_from_file.o time_samples_to_file.o tran_consumer_factory.o tran.o usrp.o waveform.o zynq.o -o wiserd -lboost_system -lboost_random -lboost_thread -lboost_program_options -lboost_iostreams -lpthread -llog4cxx -luhd -loml2 -locomm -lfftw3f -lreadline


Start spectrum sensing

  • Run the wiserd application with the following arguments.
    root@node1-1:~/wiserd# ./wiserd --radio zynq --zynq_rx_freq 820e6 --zynq_rx_gain 10 --zynq_fft_bins 256 --zynq_fft_scaling 170 --zynq_avg_window 256
    linux; GNU C++ version 4.8.2; Boost_105400; UHD_003.008.002-86-g566dbc2b

    Zynq constructed
    zynq_fft_bins 8
    zynq_fft_scaling 170
    zynq_rx_freq 820000000
    zynq_rx_gain 10
    Ready!
    Zynq thread started
    >

  • The Zynq parameters passed to the FPGA to configures the RF hardware and FFT engine
    a) '—zynq_rx_freq 820e6' ⇒ sets Rx center frequency. Range of values: [400M 4000M]
    b) '—zynq_rx_gain 10' ⇒ sets Rx amplifier gain. Range of values: [5.0 20.0]
    c) '—zynq_fft_bins 256' ⇒ sets FFT size. Range of values must be power of 2: [8 256]
    d) '—zynq_fft_scaling 170' ⇒ sets FFT stage scaling.
    e) '—zynq_avg_window 256' ⇒ sets time averaging across bins. Range of values: [1 256]

Note: the sampling rate not configurable and fixed at 30Msps.

  • From wiserd enable FFT engine and start streaming frequency bins from the FPGA to host
    > --fft_engine 1

  • The FFT bin data is collected in binary file name zynq_rx_fft.bin
  • From wiserd disable FFT engine and stop streaming data to host
    > --fft_engine 0

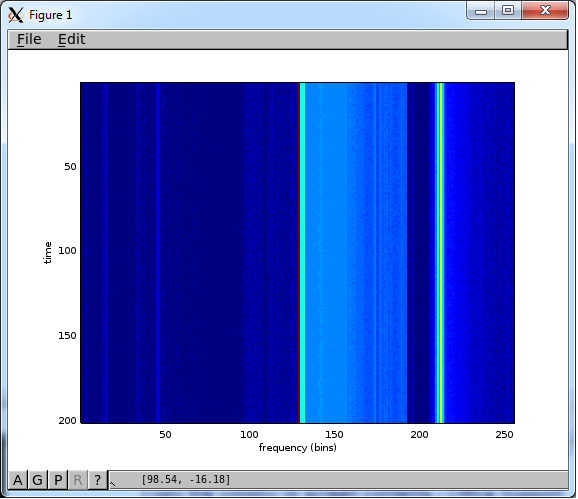

  • To view a water fall image collected rx spectrum data, run the fPlot script in octave. A sample image is shown below with a tone at 10MHz generated from a USRP.
