Magic Room: Device-Free Sensing of People using RFID Tags & Machine Learning
WINLAB Summer Internship 2024
Group Members: Shriya Das, Xiang Meng, Sam-Fone Cheung, Aly Mustafa
Advisor: Aggelos Bletsas
Project Objective
In an age of privacy concerns from cameras, it is important to localize people and items without using devices. Radio Frequency Identification Devices (RFID) offer a path to device-free localization i
Batteryless, ultra-low cost RFID (radio frequency identification tags) tags can serve as additional ultra-low cost antennas; variations of the multipath propagation inside a room offer impressive information for estimating the number of people and their tracks inside a room; WINLAB techniques, including machine learning, will be tested.
Weekly Progress
WEEK ONE-FOUR
For the first few weeks, our group worked solely on the Plant Doctor project, also led by our advisor Aggelos Bletsas. Additionally, we examined prior work done by our advisor to localize people using RFID tags (1).
WEEK FIVE
Progress: During our first week of work, we put 150 RFID tags along two walls of the WINLAB conference room. Before putting them on, we recorded the distinct EPC (electronic product code) of each tag. We spaced the tags 16cm apart to minimize any interference from multiple tags based on their wavelength. We placed these tags in rows around 4 to 5 feet off the ground.
WEEK SIX
Progress: By the end of Week 6, we finished putting 219 RFID tags around the conference room. We had to avoid large areas of the room such as the whiteboards due to metallic interference and the projector wall. Of these 219 tags, we consistently received 200-210 tags and the remaining tags were read infrequently. The low RSSI (Received Signal Strength Indicator) values of some of these tags may be a result of metal studs within the walls which requires further investigation.
WEEK SEVEN
Week 7 Presentation
Progress: This week we explored MATLAB code created by the prior group and recalibrated to the conference room.
WEEK EIGHT
Week 8 Presentation
Progress: Adapted the existing code to adhere to FCC guidelines regarding frequency usage. Additionally, we started working on a 3D mapping system for the tags.
WEEK NINE
WEEK TEN
Acknowledgements
We would like to thank Dr. Aggelos Bletsas and Dr. Richard Howard for their invaluable guidance throughout this summer. We would also like to thank Jennifer Shane, Ivan Seskar, and the rest of the WINLAB faculty for this opportunity.
References
(1) A. Kleniatis, A. Dimitriou and A. Bletsas, "Device-Free Localization of Multiple Humans with Passive RFID and Joint RSSI-Phase Techniques," 2024 IEEE International Conference on RFID (RFID), Cambridge, MA, USA, 2024, pp. 1-6, doi: 10.1109/RFID62091.2024.10582592. keywords: {Location awareness;Antenna measurements;Radio frequency;Performance evaluation;Fluctuations;Training data;Radar tracking},
Attachments (6)
-

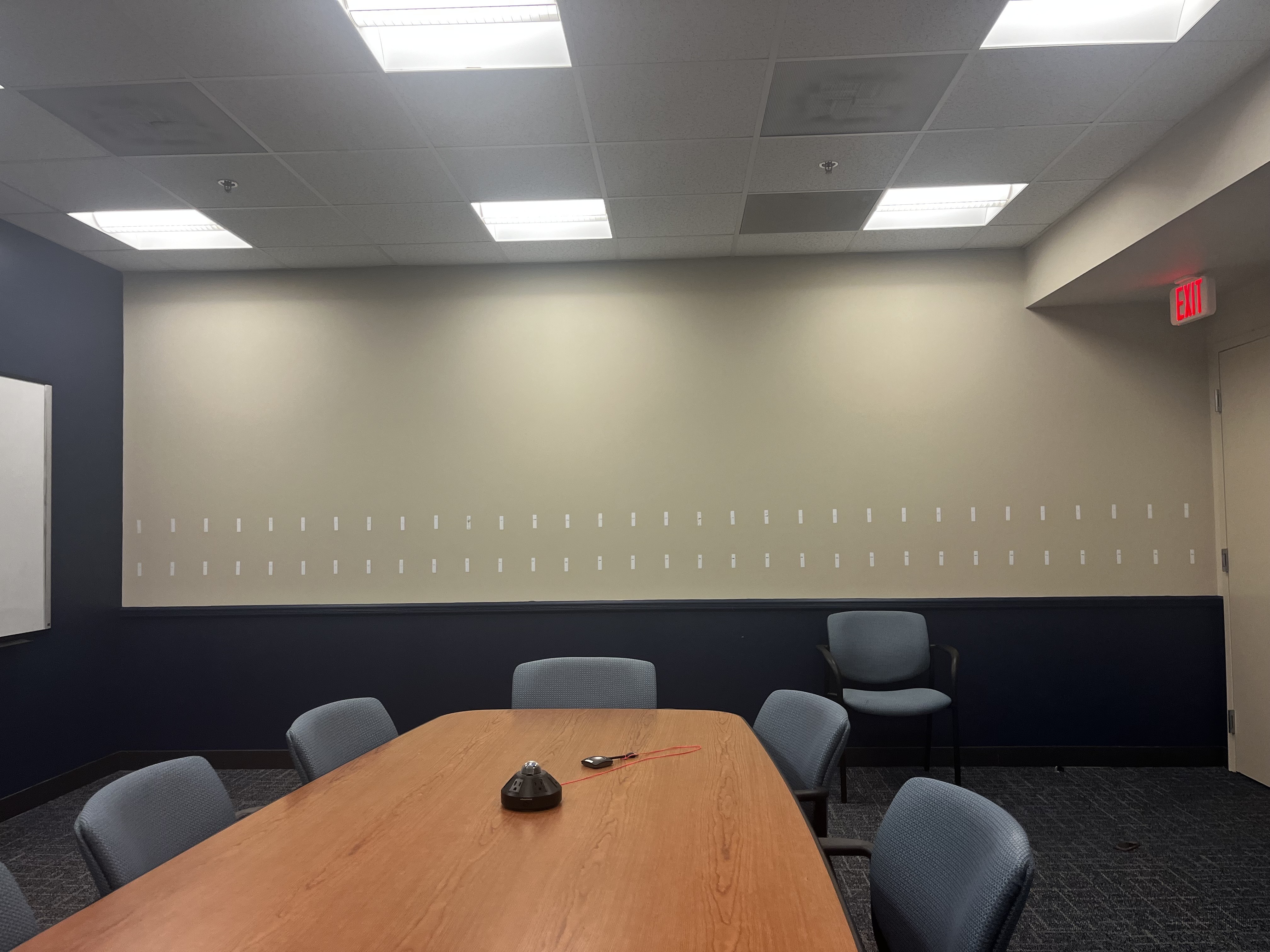

Week 5_1.jpg
(2.8 MB
) - added by 3 months ago.
RFID Tagging Week 5 Update #1
-

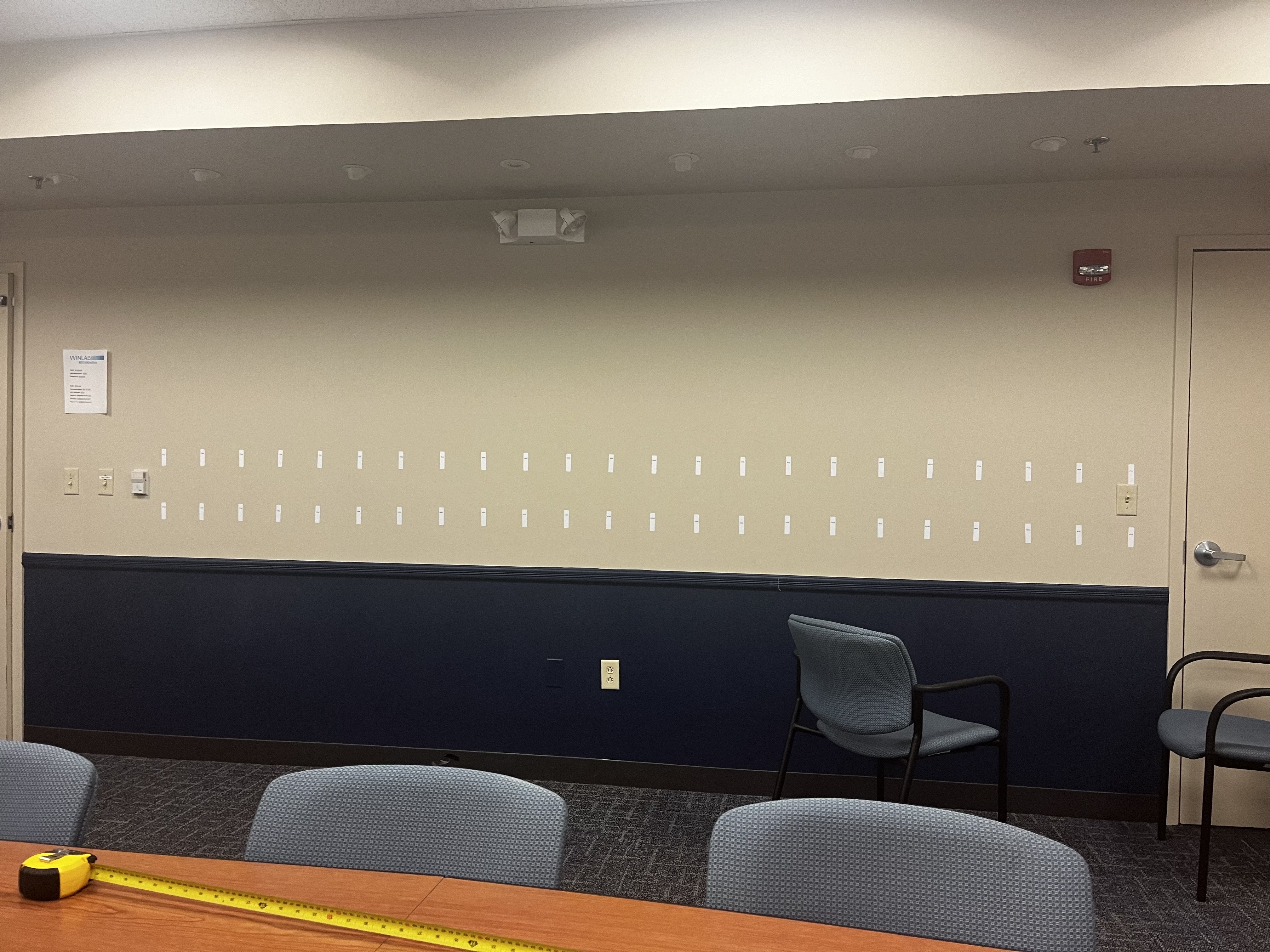

Week 5_2.jpg
(3.4 MB
) - added by 3 months ago.
RFID Tagging Week 5 Update #2
-

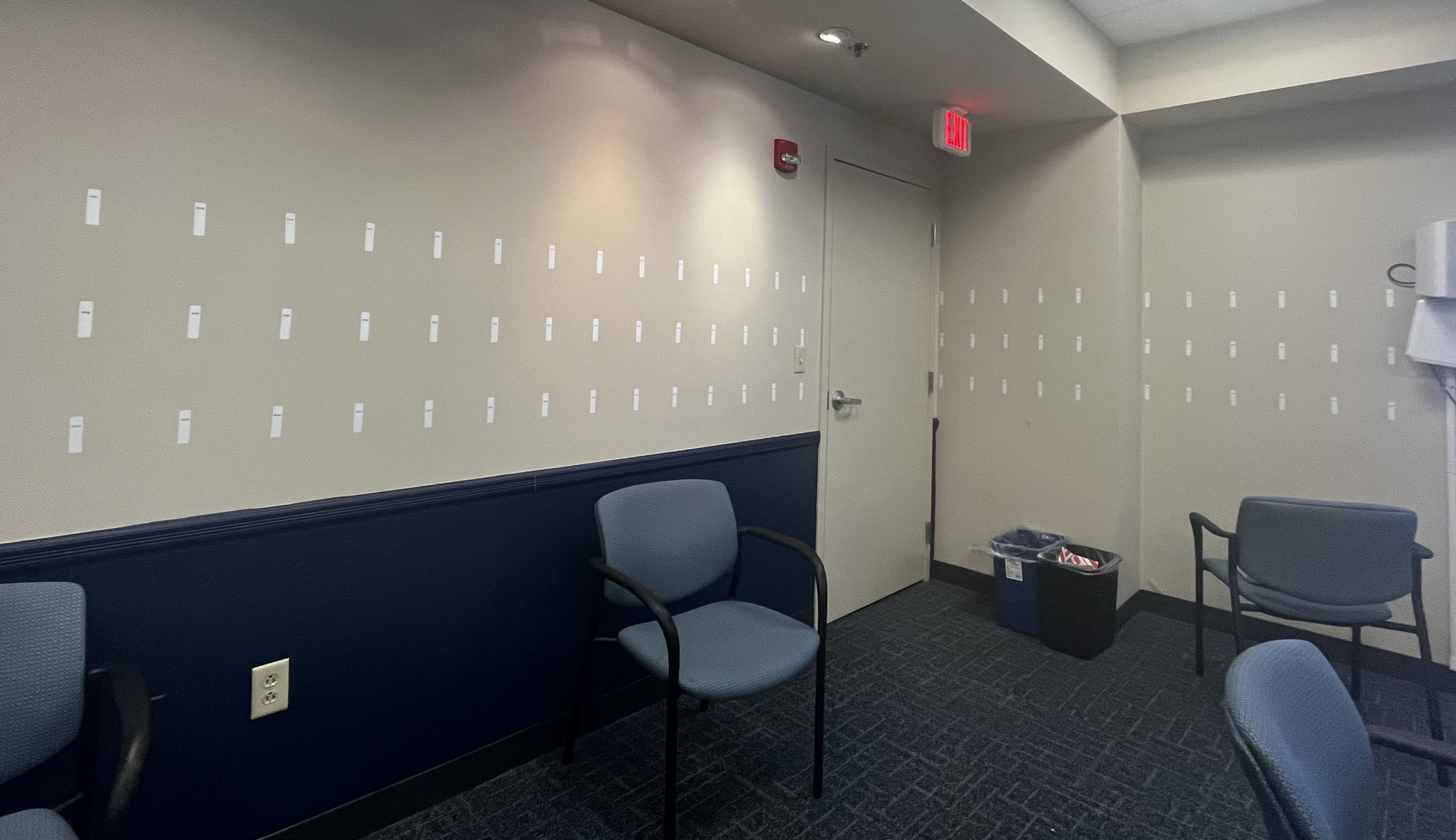

Week 6_1.jpg
(1.8 MB
) - added by 3 months ago.
RFID Tagging Week 6 Update #1
-

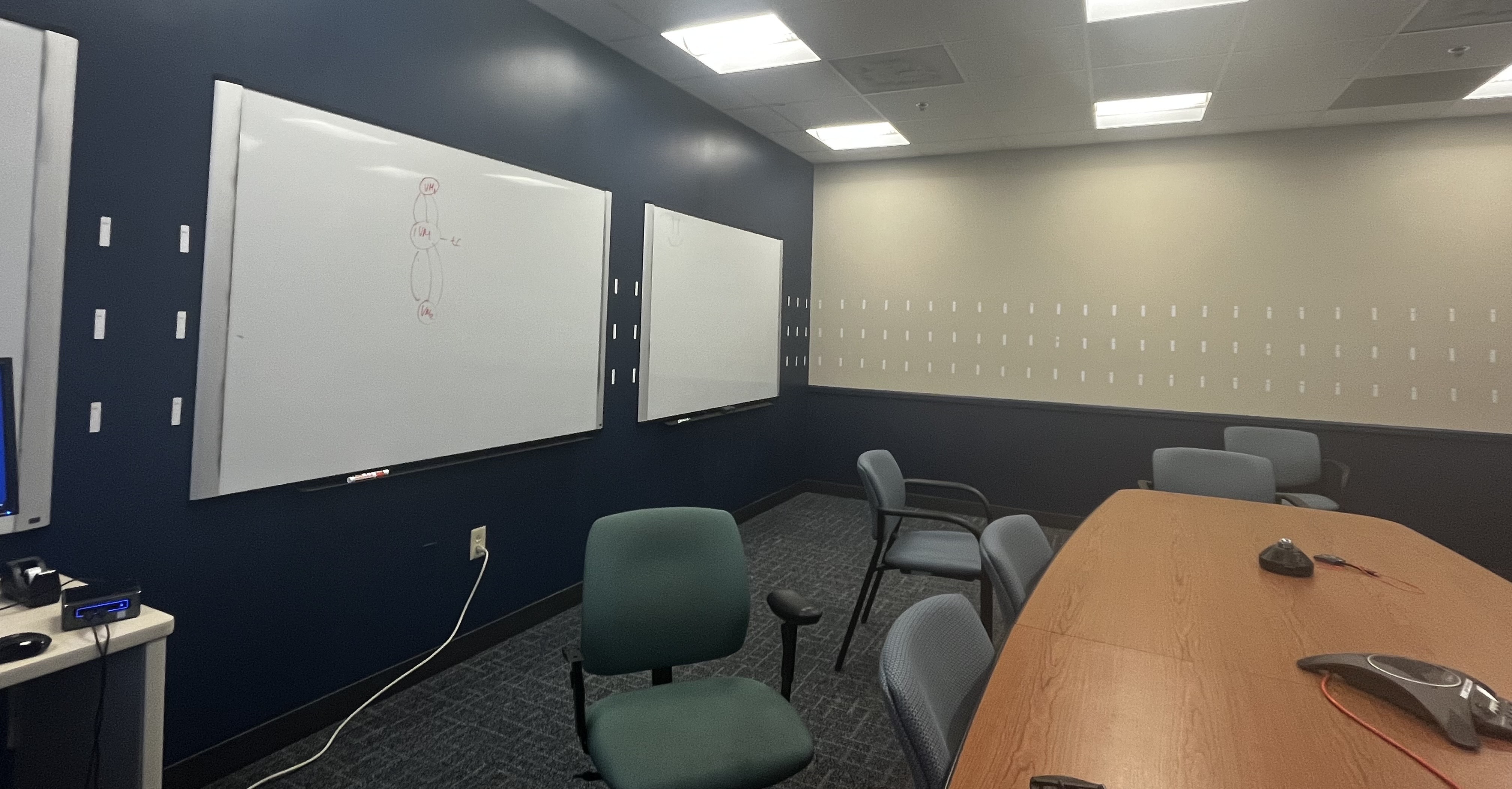

Week 6_2.jpg
(1.6 MB
) - added by 3 months ago.
RFID Tagging Week 6 Update #2
-
(102.9 KB
) - added by 2 months ago.

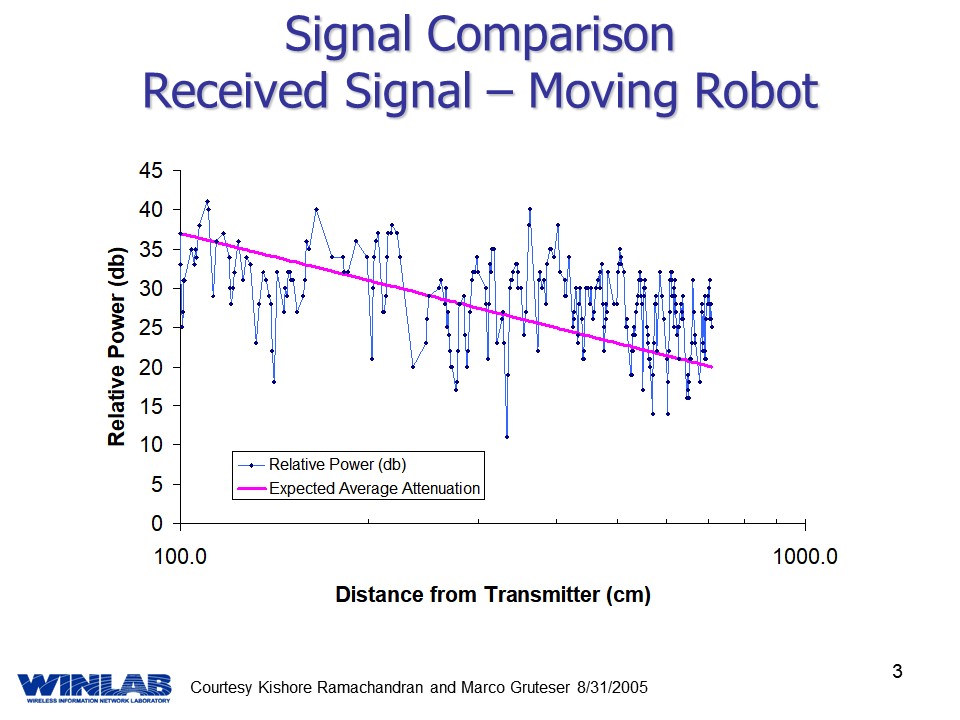

Recieved Signal Robot Graph
-

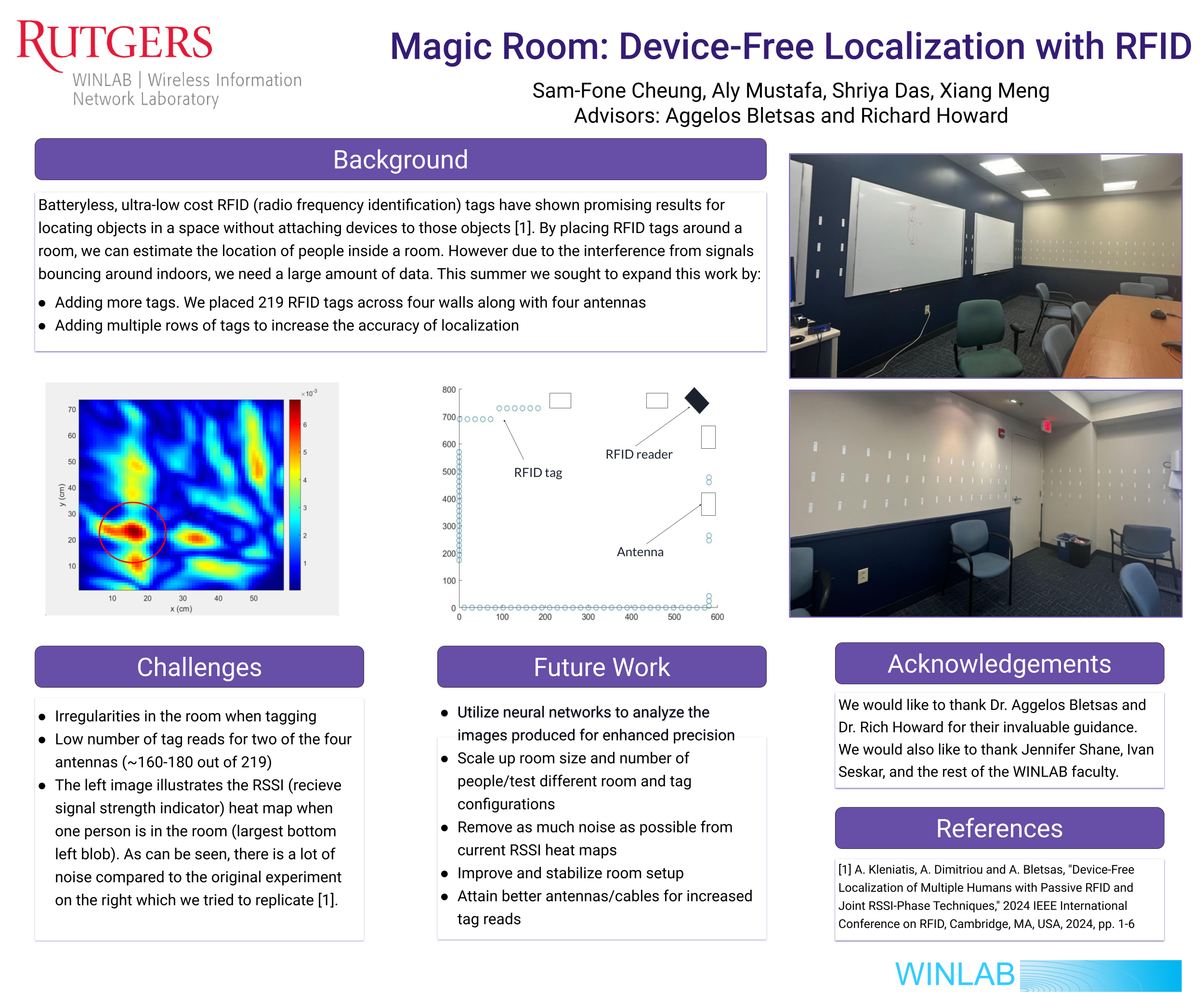

Magic Room WINLAB Poster.pptx.png
