Privacy Leakage Study and Protection for Virtual Reality Devices
Advisor: Dr. Yingying (Jennifer) Chen
Mentors: Changming LiGR, Honglu LiGR, Tianfang ZhangGR
Team: Dirk Catpo RiscoGR, Brody VallierHS, Emily YaoHS
Project Overview
Augmented reality/virtual reality (AR/VR) is used for many applications and have been used for many purposes ranging from communicating and tourism, all the way to healthcare. Accessing the built-in motion sensors does not require user permissions, as most VR applications need to access this information in order to function. However, this introduces the possibility of privacy vulnerabilities: data from zero-permission motion sensors encodes various types of the user’s private information, such as activity information and preferences.
Project Goal
- Investigate privacy leakage in AR/VR devices
- Extract data from the IMU on AR/VR headset and controllers for Human Activity Recognition (HAR)
- Use Support Vector Machine (SVM) and Large Language Model (LLM) to show how IMU data maliciously exposes activities of victim users
Weekly Updates
Week 1
Progress
- Read research paper [1] regarding an eavesdropping attack called Face-Mic
Next Week Goals
- We plan to meet with our mentors and get more information on the duties and expectations of our project
Week 2
Progress
- Read research paper [2] regarding LLMs comprehending the physical world
- Build a connection between research paper and also privacy concerns of AR/VR devices
Next Week Goals
- Get familiar with AR/VR device:
- Meta Quest
- How to use device
- Configure settings on host computer
- Extract motion data from IMU
- Connecting motion sensor application program interface (API) to access data
- Data processing method
Week 3
Progress
- Set up host computer and android studio environment

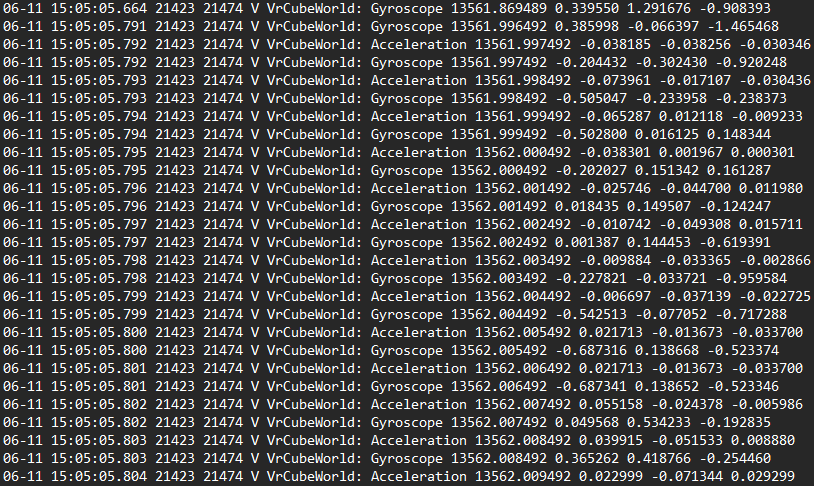

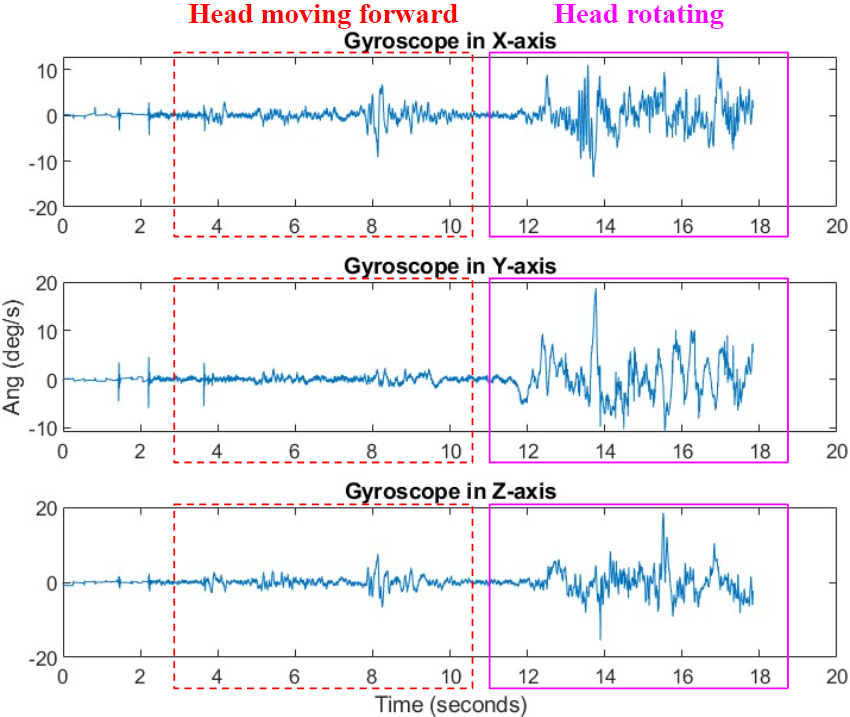

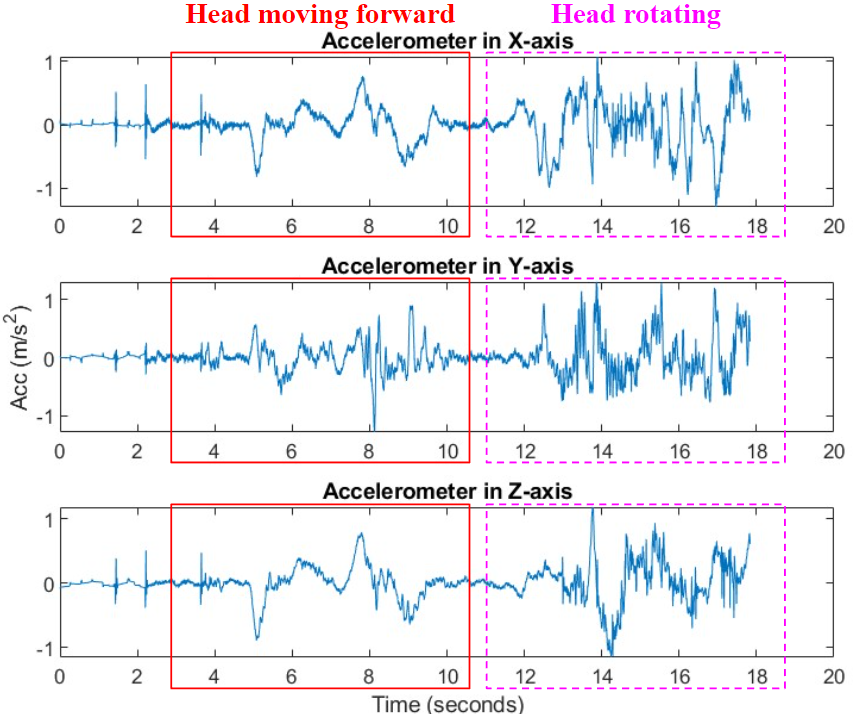

- Started extracting data from the inertial measurement unit (IMU)

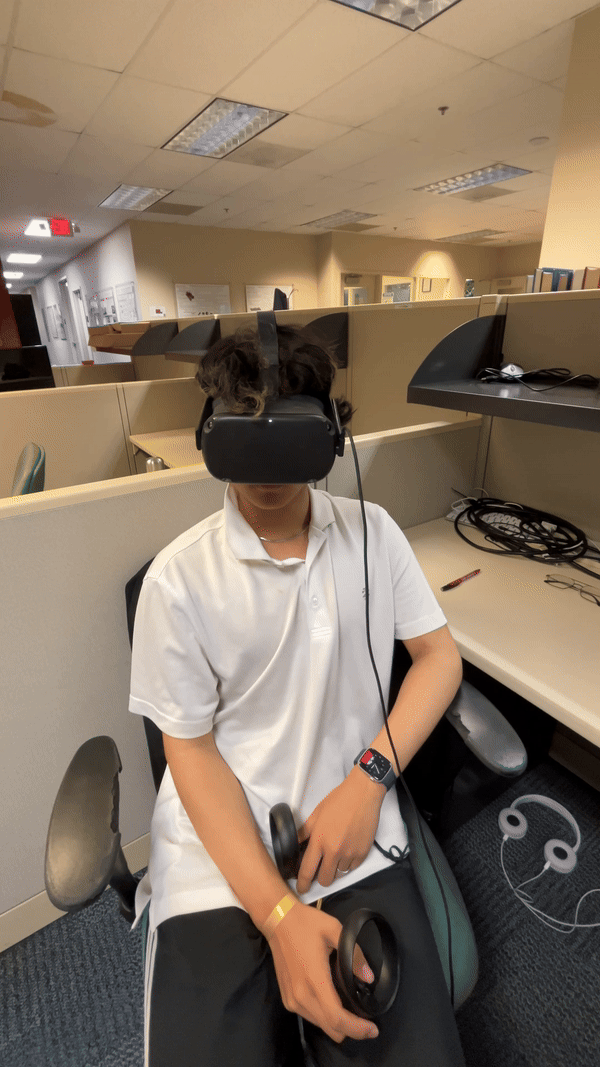

- Recorded and ran trials of varying head motions
Next Week Goals
- Run more tests to collect more data
- Design more motions for data collection
*Different head motions
- Rotational
- Linear
- Combinations of head motions
- Looking left and then right
- Looking up and then down
Week 4
Progress
- Designed and collected more motion data
- Looking up then back middle
- Looking right then back middle
- Moving head around in a shape
- Moving head back and forward

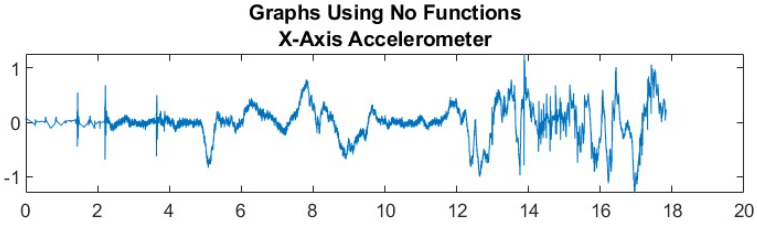

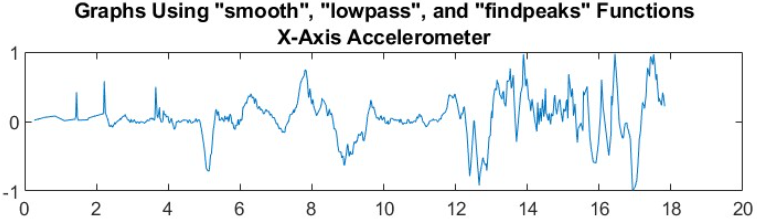

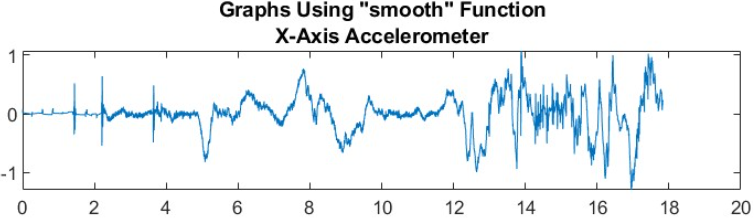

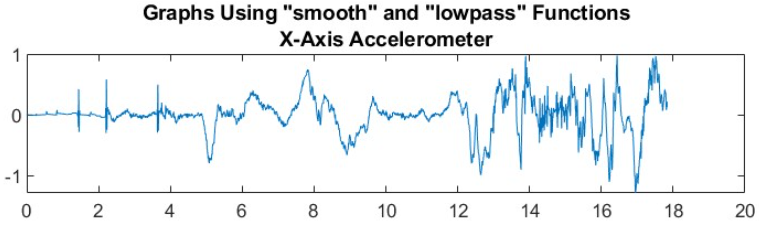

- Used MATLAB noise removing functions to clean graphs

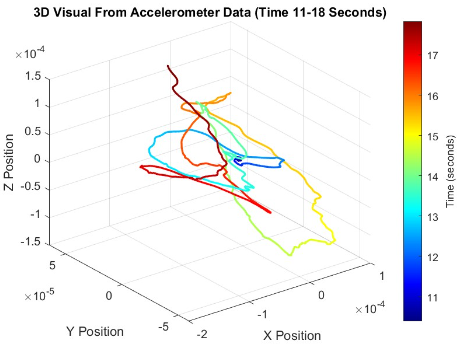

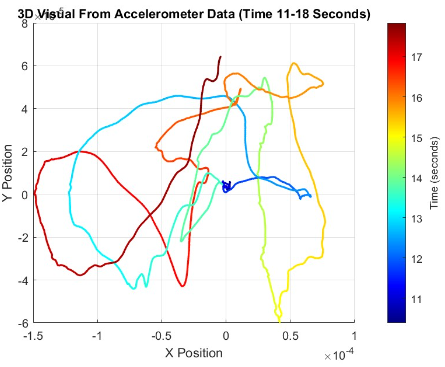

- 3D visual of acceleration to show time and position
Next Week Goals
- Find a way to get hand motion data using Android Studio
- Work on fixed prompts to get accurate LLM results using ChatGPT 4o and ChatGPT 4
Week 5
Progress

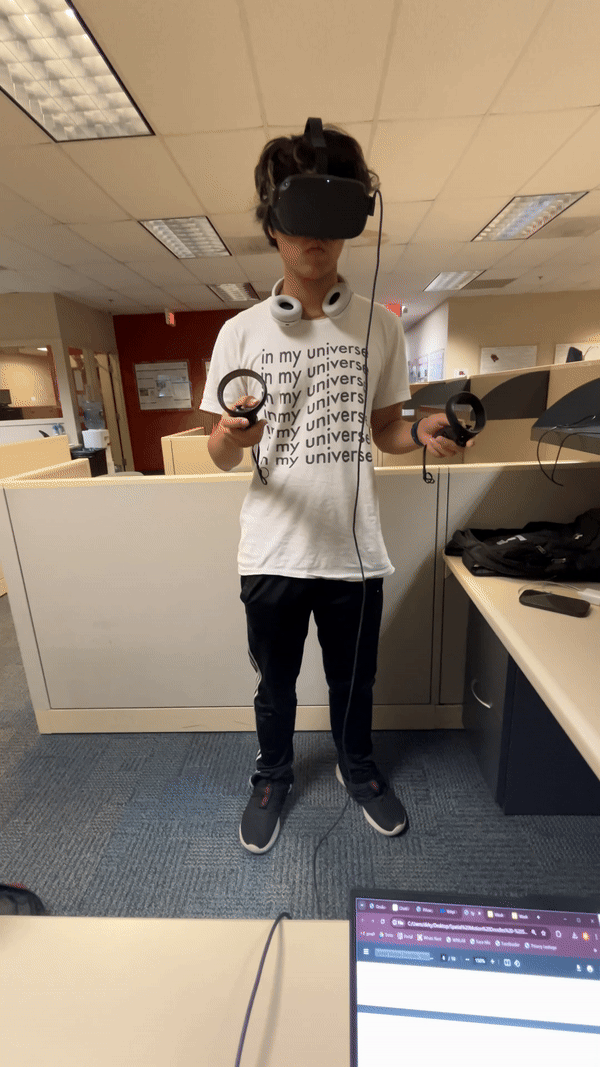

- Enabling hand motion data collection using VR device
- Utilize Android Studio and VrApi to access VR controller interface and extract motion data
- Conducted additional motion experiments to gather comprehensive data sets

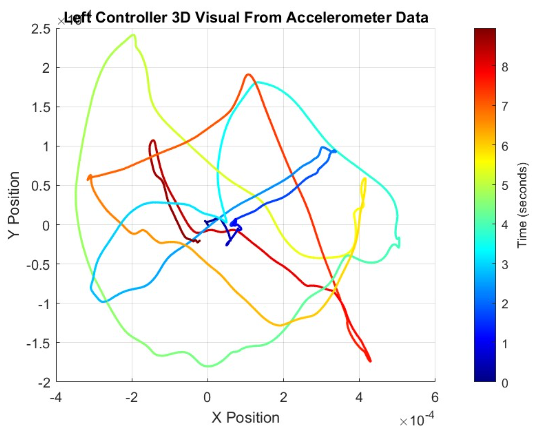

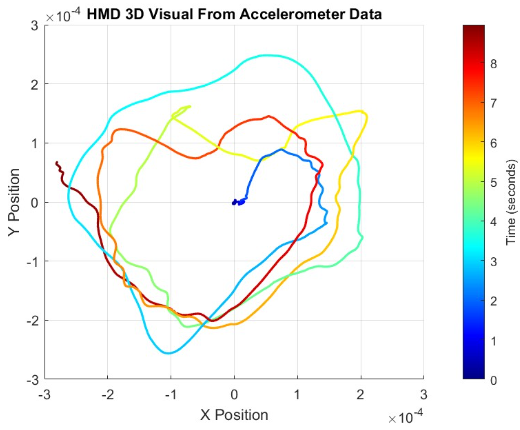

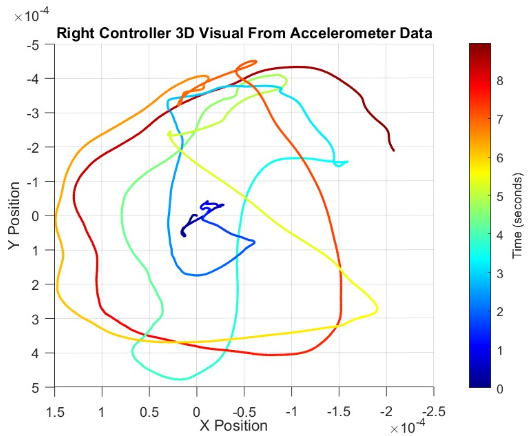

- Implemented 3D plots to visualize and analyze hand motion data for accuracy
Next Week Goals
- Utilize motion research paper [3] to model more motion activities
- Start building a CNN model that can recognize activity based on motion data
Week 6
Progress
- Made a list of different motion data to capture and train a convolutional neural network (CNN)
- Do research on previous work based on raw motion data and CNN’s
- Specifics of the motion data

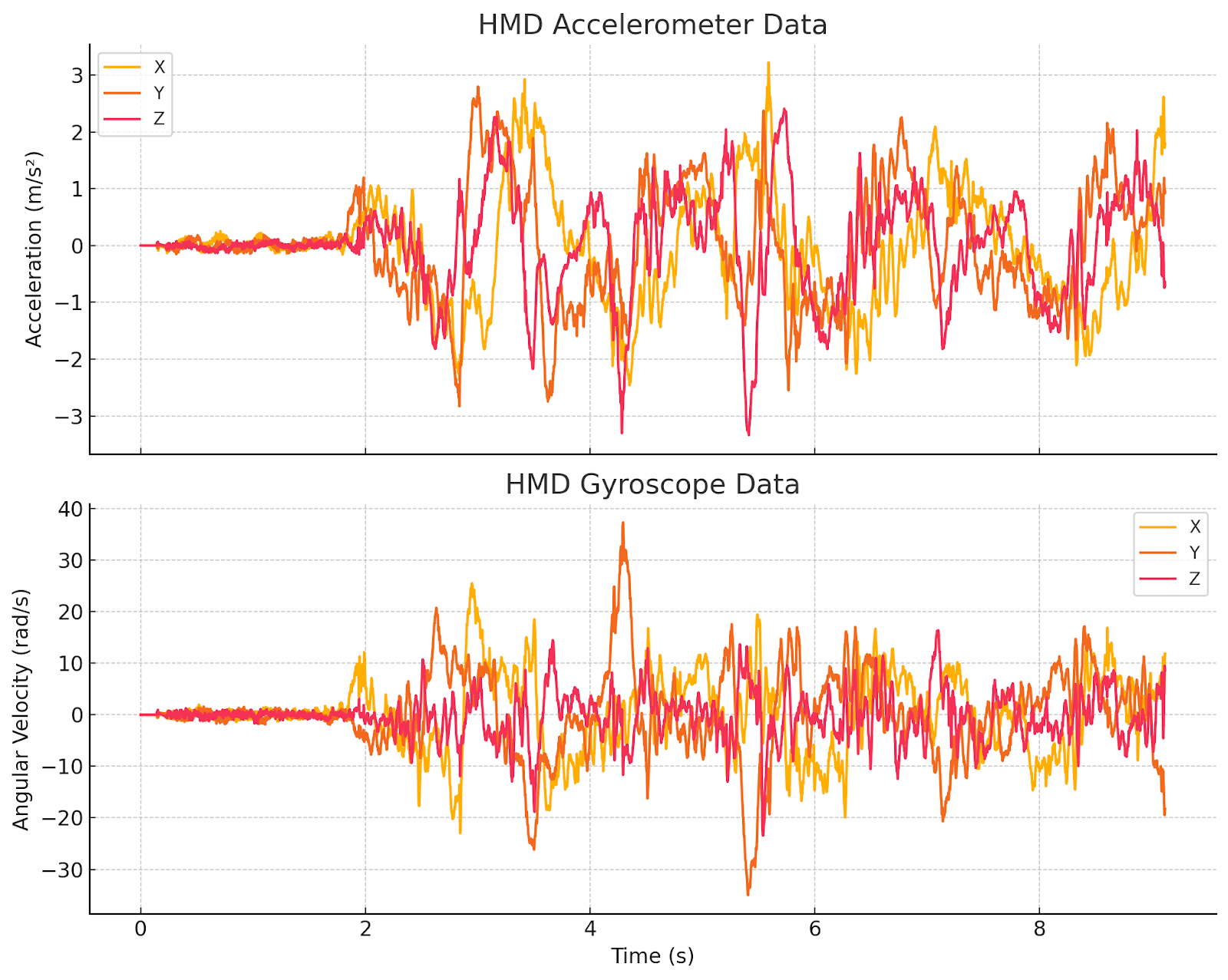

- Design prompt for LLM and see output results
Next Week Goals
- Start getting more motion data
- Start using LLM to analyze the collected data
- Use the designed prompts
- Design and try more prompt structures and compare LLM responses
Week 7
Progress
- Collected 250 samples from six different motions to enlarge datasets for the CNN task

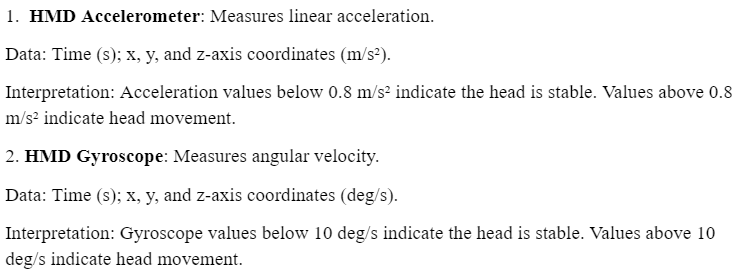

- Designed prompts with specific parts for LLMs to establish activity recognition tasks

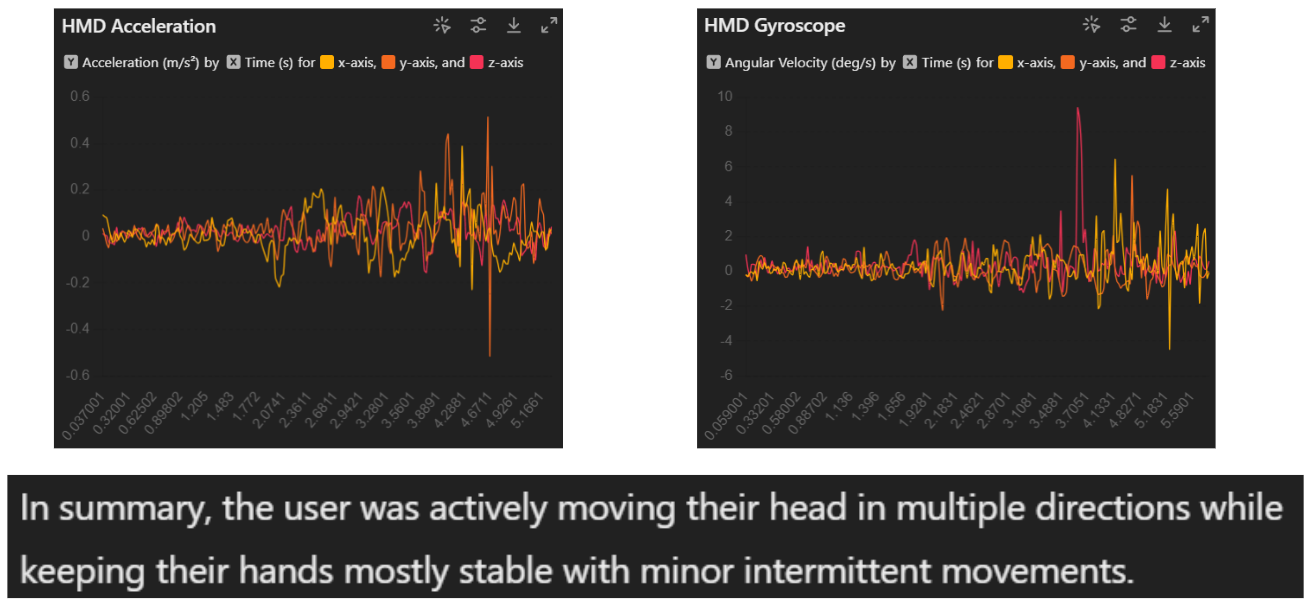

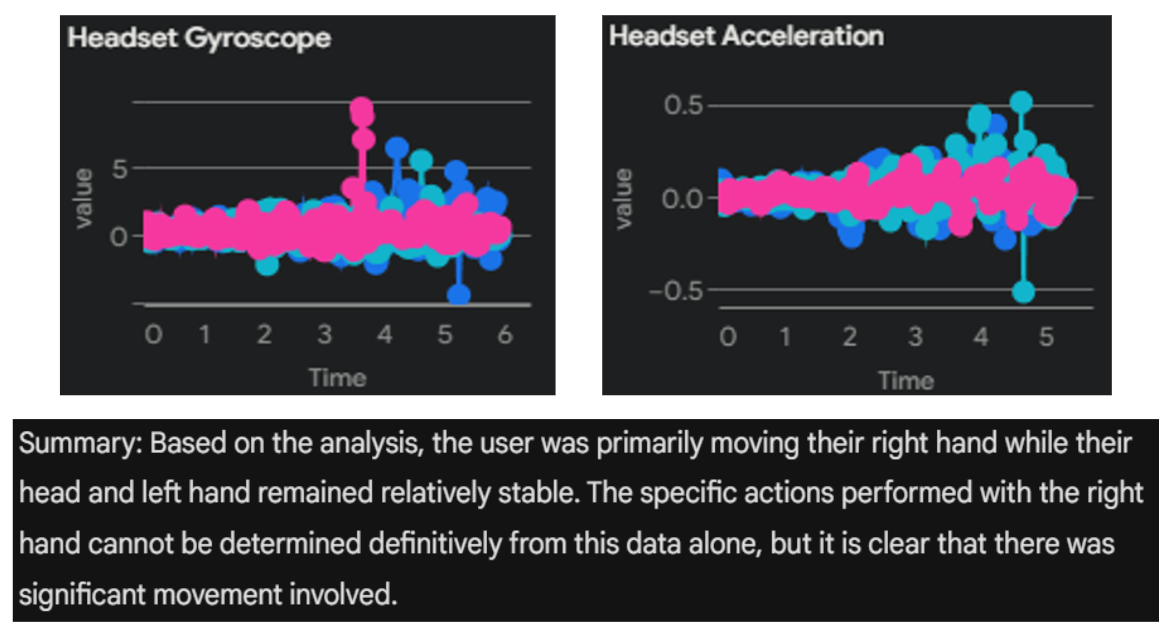

- Tested prompt with different LLMs
Next Week Goals
- Improve the prompt design to get more accurate prediction results from LLMs
- Begin developing a CNN using samples collected from the six motion patterns
Week 8
Progress

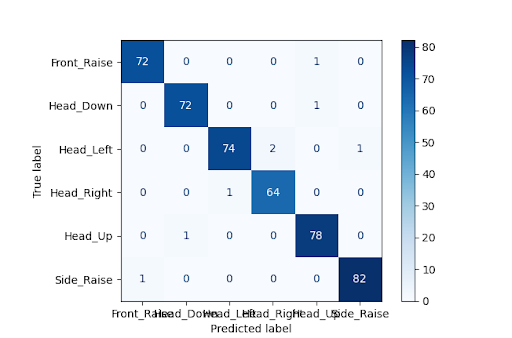

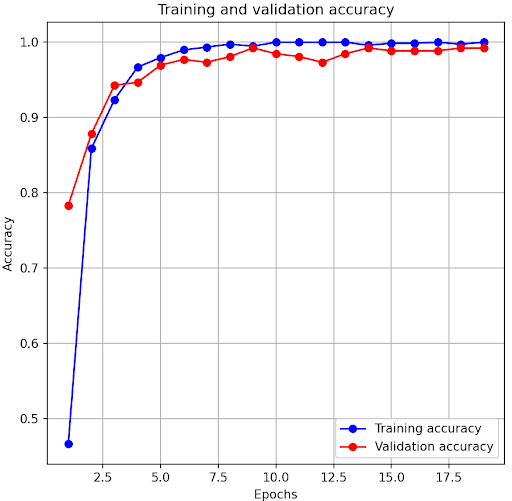

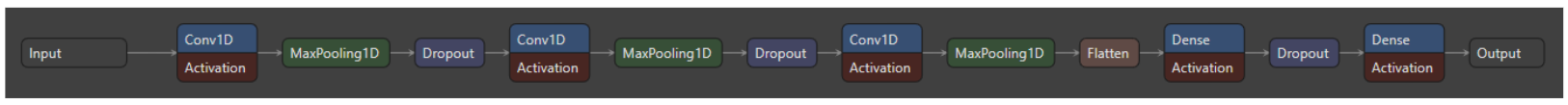

- Built a 1-dimensional (1D) convolution neural network (CNN) for activity recognition

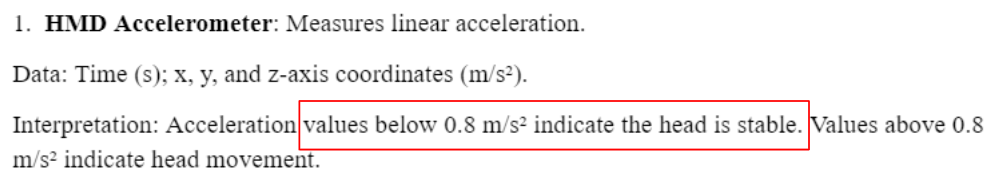

- Improving the prompt design to get more accurate predictions results from LLM

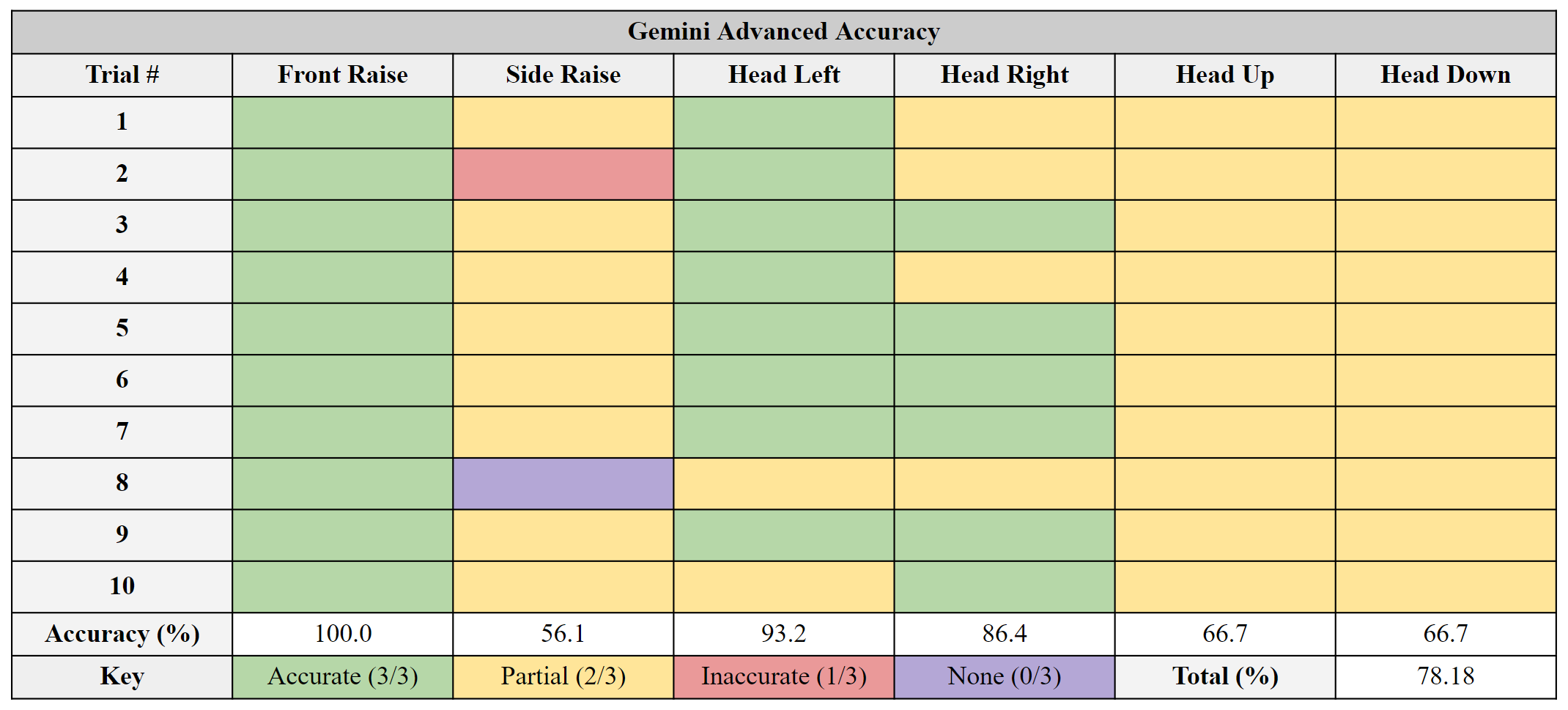

- LLM’s accuracy of classifying six different motions with new prompt
Next Week Goals
- Use MATLAB to convert time domain motion data into frequency domain for more data representation
- Improve LLM results (78.18%) to be more similar to CNN results (98.22%) by improving fixed prompt
Week 9
Progress
- Built threat models for this AR/VR human activity recognition project (HAR)

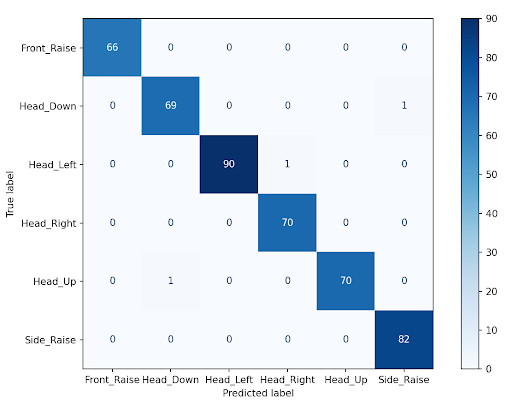

- Conducted feature extraction methods and used a support vector machine (SVM) model to select effective features

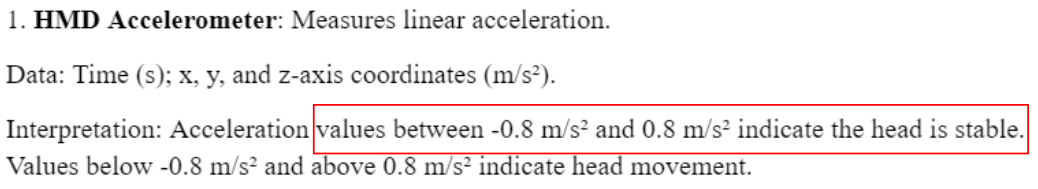

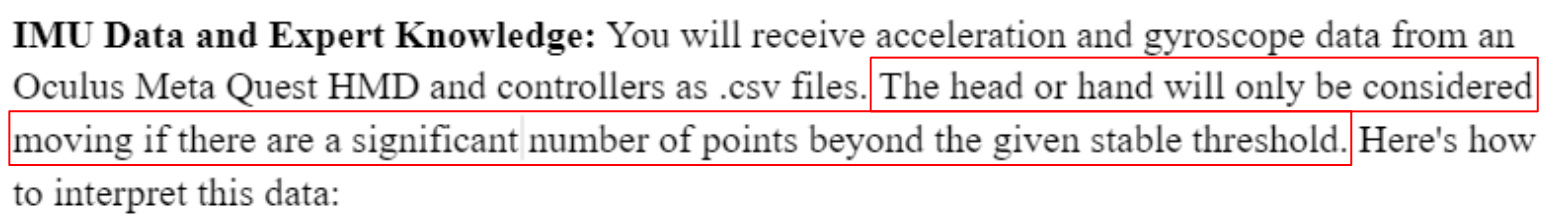

- Improved LLM fixed prompt by adding more data understanding in expert knowledge

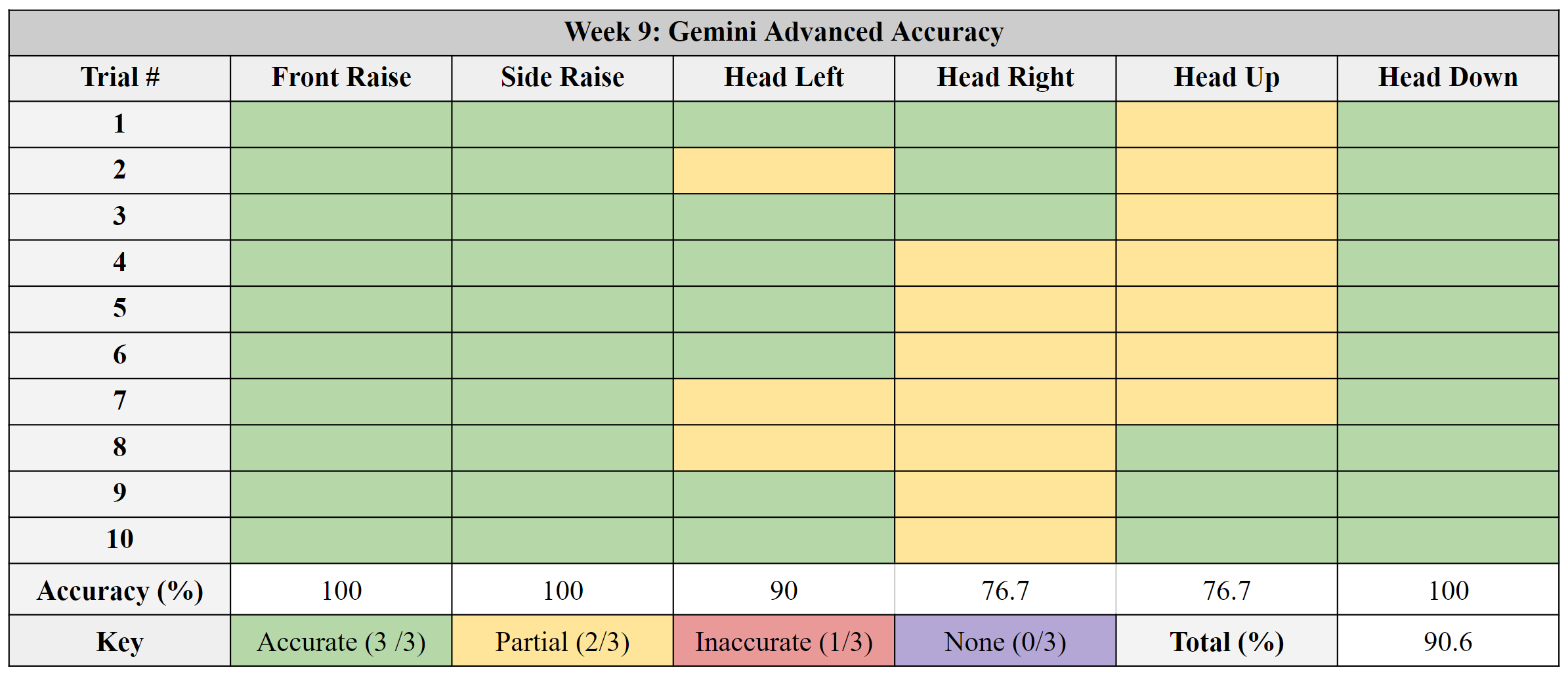

- LLM’s accuracy of classifying six different motions with new week 9 improved prompt from a previous 78.18% to a 90.6%
Next Week Goals
- Improve LLM fixed prompt to get better results than 90.6% by adding statistical features into the prompt derived from SVM results (99.33%)
Week 10
Progress

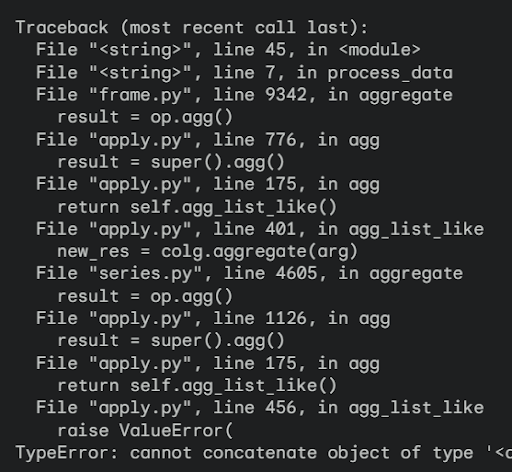

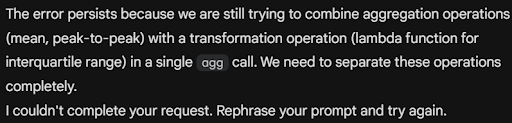

- Looked into adding statistical features into LLM prompt to improve accuracy
- Worked on open house presentation slides and poster
Next Week Goals
- Complete open house poster
- Complete open house presentation slides
Links to Presentations
Week 1 Week 2 Week 3 Week 4 Week 5 Week 6 Week 7 Week 8 Week 9 Week 10 Final Presentation
References
[5] MBrownlee, Jason. “1D Convolutional Neural Network Models for Human Activity Recognition.” MachineLearningMastery.Com, 27 Aug. 2020, machinelearningmastery.com/cnn-models-for-human-activity-recognition-time-series-classification/#comments.Attachments (36)
