LV-67J

Table of Contents

  1. Hardware
    1. Nodes
      1. ORBIT Node (Version 1)
        1. Orbit case 1
      1. ORBIT Node (Version 2)
        1. Orbit case 2
      1. ORBIT Node (version 3)
        1. Main Generation 3 Nodes
          1. LV-67C
          1. LV-67G
          1. LV-67J
        1. Mobile Generation 3 Nodes
          1. LV-67B
          1. LV-67F
          1. LV-67K
        1. Orbit case 3 (COTS)
        1. Assembly
          1. Case Assembly
          1. Mother Board BIOS Settings
      1. ORBIT Node (version 4)
        1. Main Generation 4 Nodes
        2. High Performance Generation 4 Nodes
        3. Large Core Count Generation 4 (SDR) Nodes
        1. Orbit case 4 (COTS)
        1. Assembly
          1. Case Assembly
        1. Debugging notes
      1. ORBIT Mobile Node (version 1)
        1. Hardware
          1. NUC
          2. SDR Front End
        2. Standard 4x4 Case Extension
          1. Battery Operation
          2. Assembly instructions

Latest version of infrastructure node

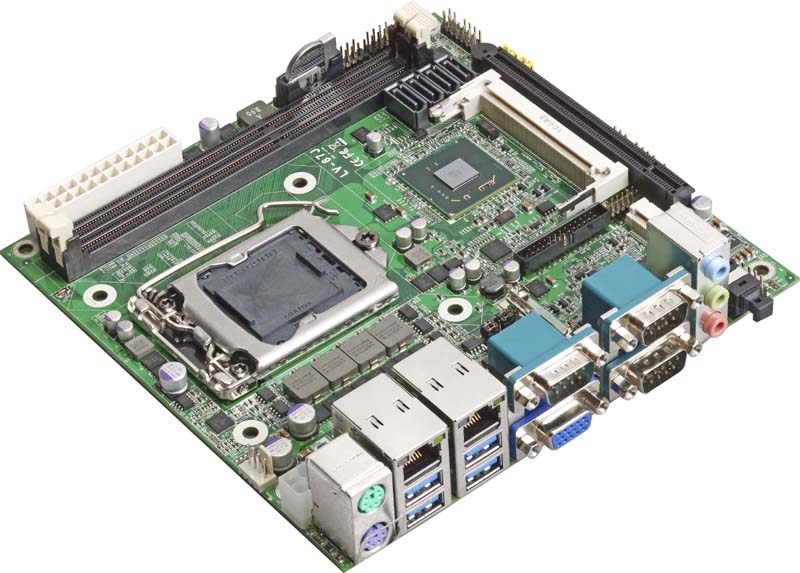

CPU Intel Corp. Intel® Core™ i7-3770 CPU @ 3.40GHz
Chipset Intel® Q77 Express chipset
Memory Two DDR3 1333MHz 16GiB
Storage SATA 300 with 160 GB 7200 RPM HD
Networking 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN
Ports 4 x USB 2.0, 4 x USB 3.0, 3 x RS232, 1 x RS232/422/485
Power Standard 24-pin ATX power supply and P4 4-pin 12V.

The LV-67J motherboard has 3 expansion slots: 1 x PCI-Express X16 Gen3 slot, 1 x Mini PCI socket, 1 x PCIEMini card

​Product Page
